CASEplate

CASEplate

$14.99

A clean and robust mounting system for your Raspberry Pi and Pi-Plates.

SKU: BASER1

Description

The BASEplate is a highly recommended mounting system for your Pi-Plates stack. It includes everything you need to securely hold your Raspberry Pi and Pi-Plates in place. Compatible with all revisions of the Raspberry Pi including the A, B, B+, and the R2.

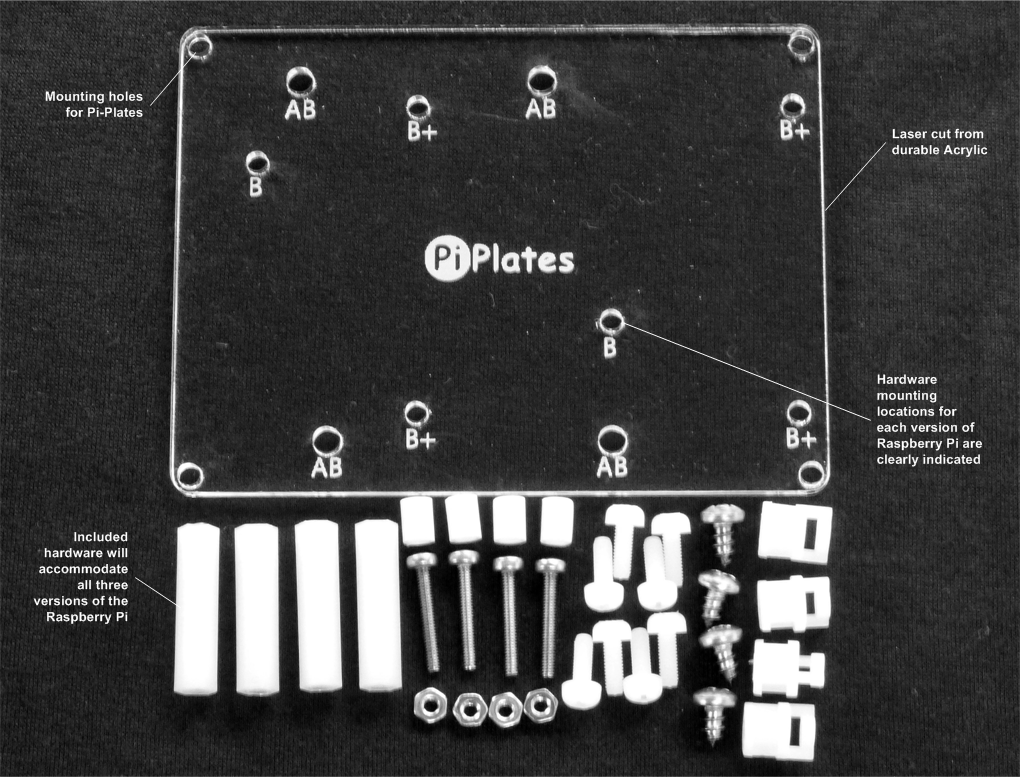

ppBASE

General

  • Measures 100mm by 75mm by 3mm
  • Made from optically clear cast acrylic
  • Laser cut and laser etched
  • Each Raspberry Pi standoff location is clearly etched for easy assembly
  • Temperature Range of material is -40° to 170° F
  • High tensile strength
  • All mounting hardware is included¹
  • Detailed Assembly Instructions

Included Hardware

  1. Four 25mm nylon standoffs
  2. Four 1/4″ plastic spacers
  3. Four 1/4″ nylon board edge standoffs
  4. Four steel #6 screws²
  5. Four M2.5 16mm steel machine screws
  6. Four M2.4 steel nuts
  7. Eight M3 nylon screws

BASEplate Assembly Guide

P1010563

Example of BASEplate with single DAQCplate board. Raspberry Pi is not visible.

Additional information

Weight 1 oz
Dimensions 100 x 75 x 10 mm
