Overview

The BRIDGEplate allows any computer with a USB port to communicate with and control a stack of Pi-Plates, eliminating the need for a Raspberry Pi. It has been tested with Windows, Linux, and macOS with the following programming options:

  1. Interactively with a terminal emulator such as Putty on Windows and Linux or SerialTools on the Mac.
  2. Programmatically and interactively with Python on Windows, Mac, and Linux using the cross functional BRIDGEplate.py module.
  3. Programmatically with C on Windows and Linux using our BRIDGEplate.c library (Mac pending)

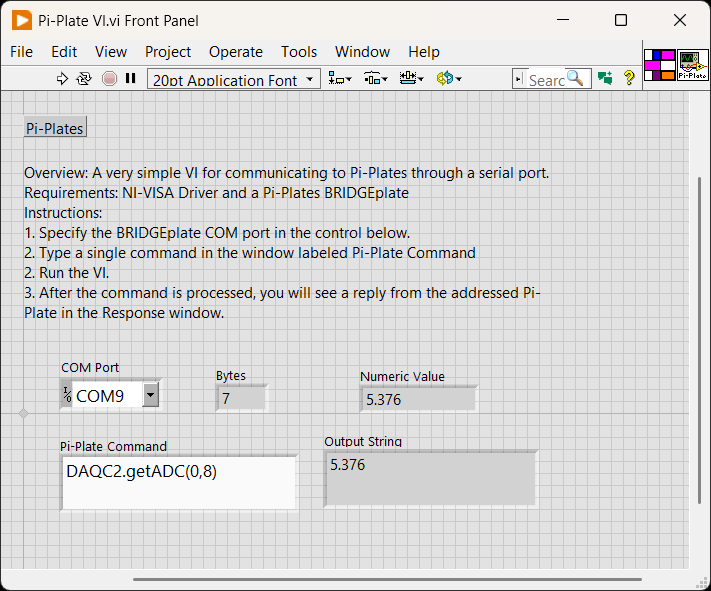

  4. Programmatically with  LabView on Windows using the BRIDGEplateVI
  5. With the free PIPLATElogger software on Windows and Mac (Linux pending)

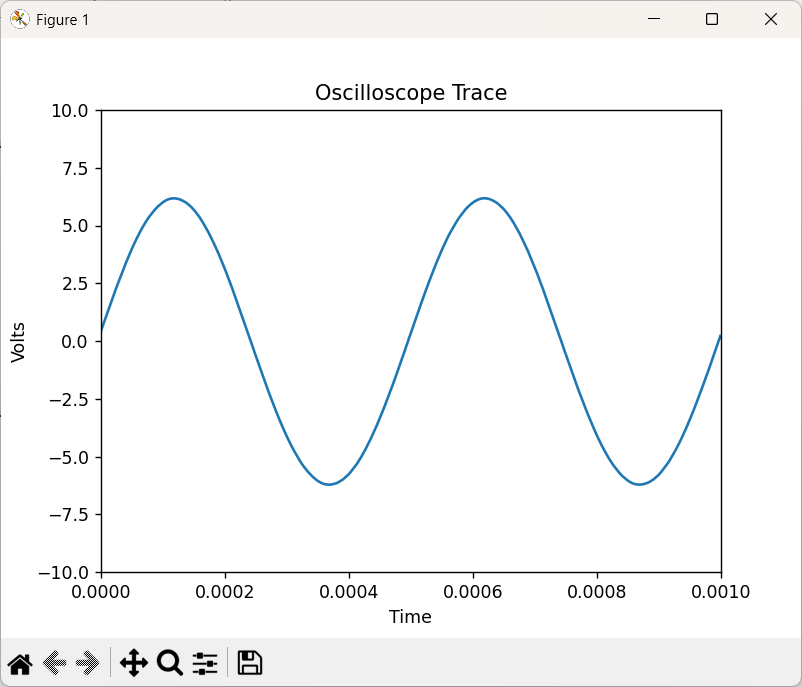

Plotting analog data from a DAQC2plate with a Windows PC laptop connected to the BRIDGEplate

Features

  • Designed around the Raspberry Pi RP2350 - a 32-bit dual ARM Cortex-M33 microcontroller
  • A 2X20 header with support of all the signals required by Pi-Plates
  • A micro USB connector for programming and control
  • A USB C power connector
  • A power select jumper
  • A heartbeat LED
  • Software controlled switch for hard reset of all Pi-Plates
  • Supports field updates

Includes

  • Three foot programming cable
  • Four 17mm M3 nylon standoffs
  • Four 10mm M3 spacers
  • Assembled and preprogramed Pi-Plate BRIDGEplate board
  • All the above shipped in an antistatic bag
 General

  • 100% Preprogrammed and Tested
  • Detailed Online Users Guide with Examples
  • Detailed programming guides for Python and C

Specifications

  • Operating temperature range: -40 to +60C
  • Dimensions: 100mm long x 75mm wide x 25mm high (assembled)
  • Compatible with the following Pi-Plates
    • ADCplate
    • CURRENTplate
    • DAQCplate
    • DAQC2plate
    • DIGIplate
    • RELAYplate
    • RELAYplate2
    • THERMOplate
    • CASEplate
    • DINplate

BRIDGEplate

A low cost way to control Pi-Plates with your PC.

$19.99

30 in stock (can be backordered)

Add to cart

Add a 5.1V 3Amp Auxiliary Power Supply

A high quality supply to drive a power hungry stack of Pi-Plates with your BRIDGEplate.

$9.99

9 in stock

Add to cart

Add a CASEplate

A simple yet effective method of mounting your Pi-Plate stack.

$14.99

In stock

Add to cart
