THERMOplate

THERMOplate

$39.99

67 in stock (can be backordered)

Frequently bought with:

CASEplate

A clean and expandable mounting system for your Raspberry Pi and Pi-Plates.

DINplate

SKU: THERMOr1 Category:

Description

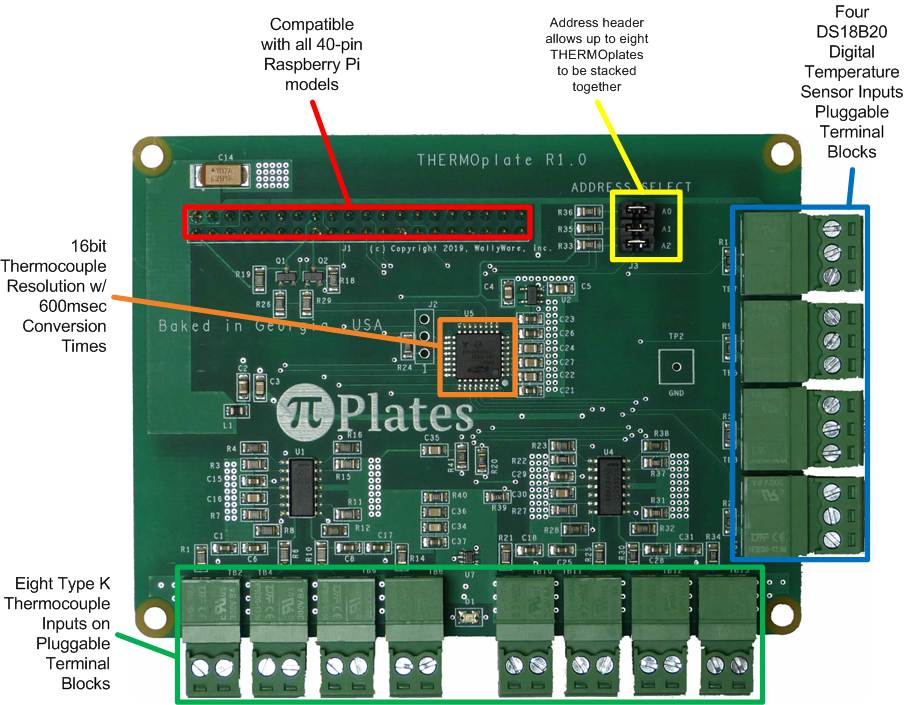

Affordable 12 Channel Temperature Sensor for Raspberry Pi

  • Eight Type-K thermocouple inputs
  • Four DS18B20 inputs
  • 16-bit thermocouple resolution
  • 600msec thermocouple conversion times
  • 1 second DS18B20 conversion times
  • 12-bit DS18B20 resolution
  • Pluggable terminal blocks
  • Stackable design allows for up to 96 temperature sensors on a sing Raspberry Pi
  • Best value - less than 1/6 the cost per channel of the MCC 134 (Pi-Plates: $5/channel - MCC: $37.25/channel)
  • Compatible with all Pi-Plates

Additional information

Weight 2.2 oz
Dimensions 110 × 80 × 35 mm
