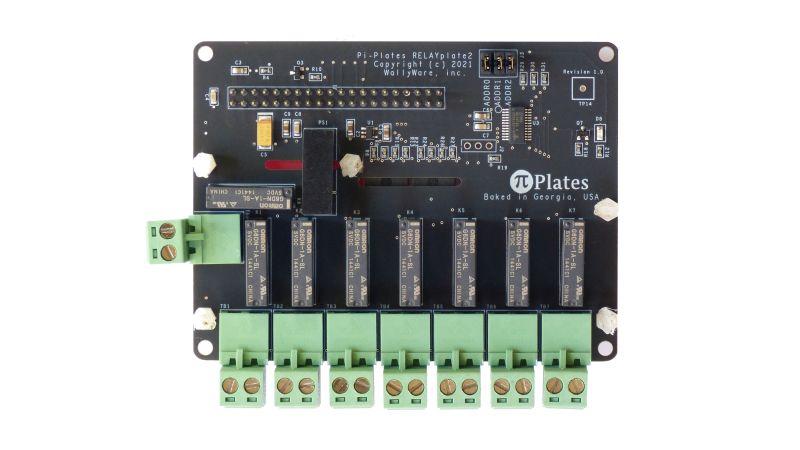

The Pi-Plates RELAYplate2 is an improved version of our original RELAYplate. This plate provides eight UL rated relays capable of switching 5 amps at 250volts AC or 30 volts DC. Convenience features include status LEDs below each relay and pluggable terminal blocks. For safety the RELAYplate2 is designed to meet the safety requirements of UL 60950 for shock and single point failure. And, like all Pi-Plates, the RELAYplate2 can be stacked to increase your relay count to 64 using eight plates. This plate is compatible with all of our other products allowing you to create the perfect customized stack of Pi-Plates to control your project.

Features

  • Eight single-pole single throw relays
  • Rated for 250 volts AC or 30 volts DC
  • Currents up to 5 amp
  • Pluggable terminal blocks for simplified setup and quick changes

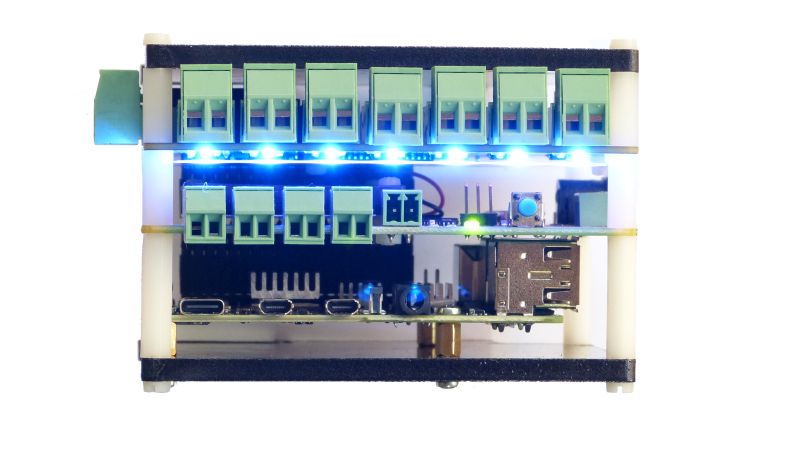

  • Eight LED annunciators on the front edge provide at-a-glance visual relay status
  • Up to eight RELAYplate2s can be stacked together providing 64 relays
  • Code compatible with original RELAYplate - no new instructions to learn
  • Includes programmable LED
  • Detailed Online Users Guide with Examples
  • Dimensions: 100mm long x 90mm wide x 15mm high
 General

  • 100% Tested
  • Dedicated onboard processor
  • Uses only three dedicated RPI pins (16, 22, and 26) while sharing pins 19, 21, 23, and 26.
  • All features accessible via backwards compatible Python command set
  • Supported by Node-RED
  • Compatible with all versions of Raspberry Pi and the BRIDGEplate
  • Can be used in combination with all members of the Pi-Plates family

Safety

  • Designed to meet the stringent safety requirements of UL standard 60950
  • Bottom shield protects user from exposed solder pads
  • Opto isolators and isolated power supply provide 3000 volts of isolation between Raspberry Pi and relays
  • Complete protection against a single point failure

RELAYplate2

And industrial grade relay board designed to meet UL60950 requirements.

$79.99

167 in stock

Add to cart

Add a DINplate

Our low cost scalable enclosure to mount your Pi-Plate stack to a DIN rail.

$29.99

In stock

Add to cart
